Touch controls configuring

Introduction

Thanks to mittorn, we have the ability to fully customize the controls in Xash3D. The new config allows you to not only add and change control buttons, but also create custom menus. There is also a built-in visual editor available, which simplifies the customization process without the need for manual file editing.

Editor mode usage

1. Launch Xash3D and start the game.
2. To enter the edit mode, click on the gear icon (command touch_enableedit).
3. In the edit mode, the grid is displayed. The number of cells can be changed with the command touch_grid_count (default is 50). The grid can be disabled with the command touch_grid_enable 0.

Touch controls layout editor

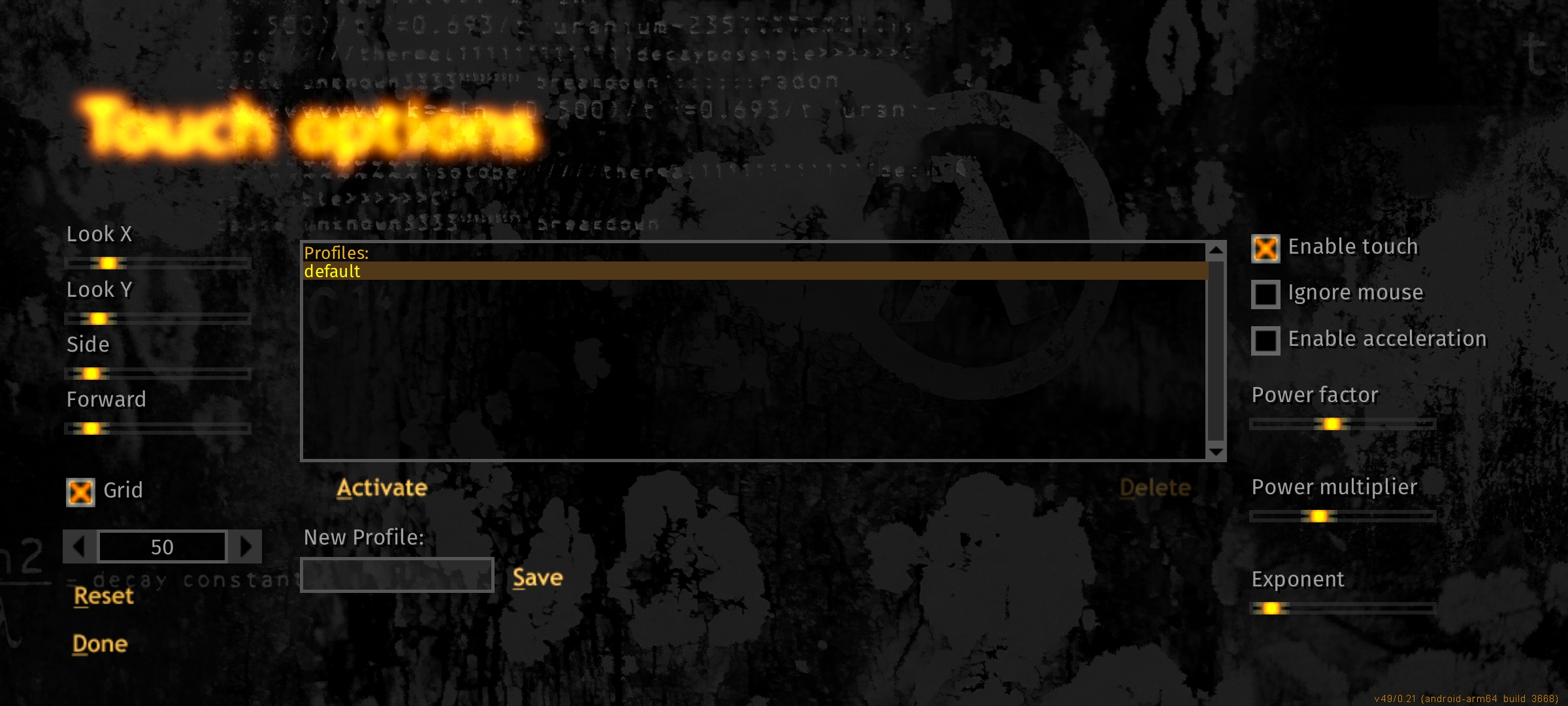

Touch profiles window

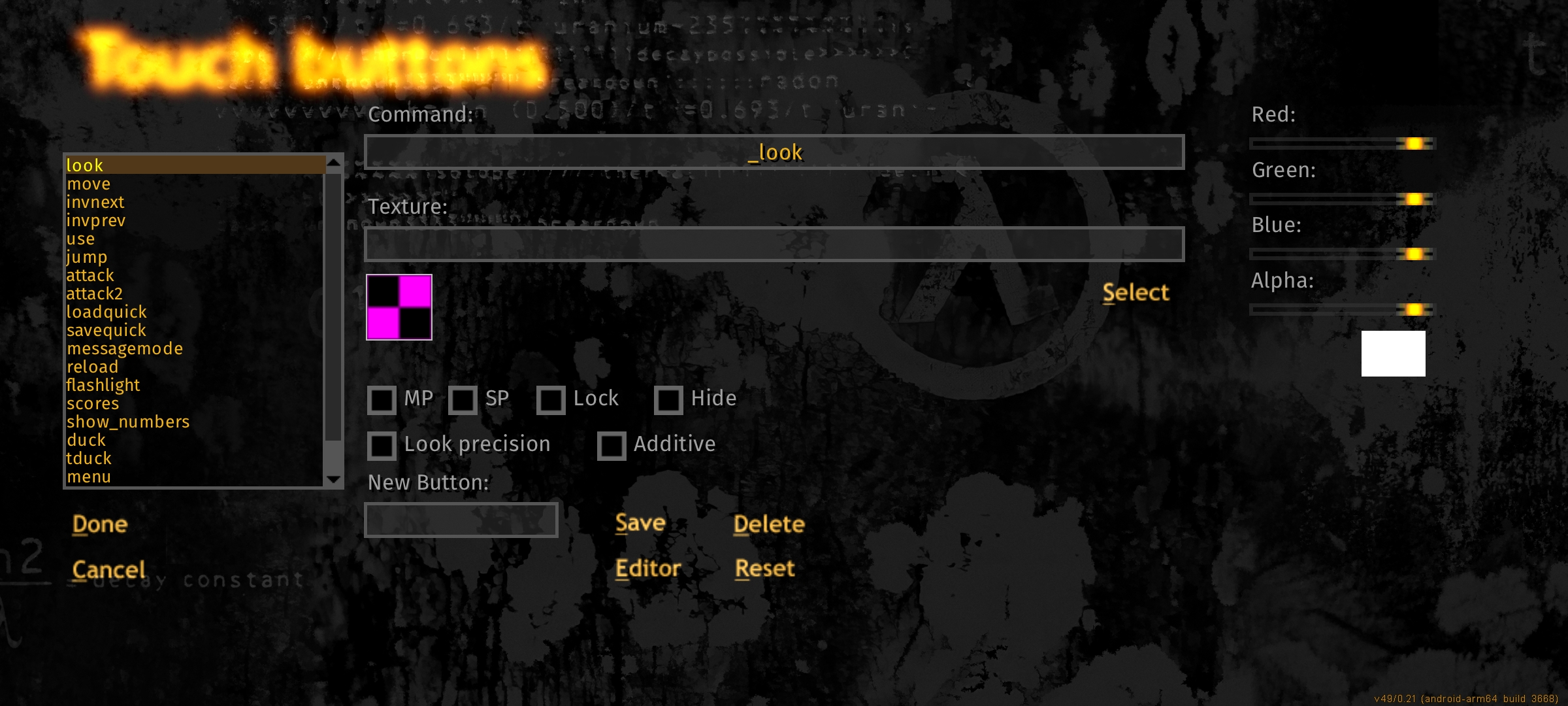

Touch buttons parameters window

Layout editor features

• Moving buttons: click on a button, drag it to the desired location, and release.
• Resizing buttons: place your first finger on the top left corner of the button, and use your second finger to resize it.
• Hiding/showing buttons: select the button (it will turn red), then use the menu:
  • Close: closes the editing mode (touch_disableedit).
  • Reset: resets the button to its default values.
  • Hide/Show: hides or shows the button (touch_hide <name> / touch_show <name>).

Working with configuration files / console

All changes made in the visual editor are automatically saved to the touch profile file. The files are located in the touch_profiles folder inside game directory. The file name depends on the selected profile.

Common commands in configuration files

// Comment: lines starting with // are ignored.

// Swipe zones for movement. Specify how far you need to swipe to speed up.
// The default values ​​are set to be optimal for a small swipe to immediately walk quickly.
touch_forwardzone "0.060000" ; touch_sidezone "0.060000"

// Sensitivity settings (pitch - horizontal, yaw - vertical).
touch_pitch ; touch_yaw

// Grid settings (see above).
touch_grid_count ; touch_grid_enable

// Draws a border around the button.
touch_set_stroke <thickness> <c> <v> <e> <t>
(<r> - red; <g> - green; <b> - blue; <a> - alpha/transparency)

// Show (1) or hide (0) client buttons.
touch_setclientonly

// Removes all buttons from the screen.
touch_removeall

// Shows all available buttons in the configuration file.
touch_list

// Saves the config after editing. You can specify a new file name.
touch_config_file command.cfg

The full list of buttons in the standard touch.cfg file, displayed in the console when using touch_list.

Adding new buttons

To add a new button, use the console command:

touch_addbutton "digits" "touch/key_1.png" "toggle_digits" 0.340000 0.782222 0.400000 0.888889 255 255 255 100 0

Parameters of touch_addbutton command

Parameter	Description
"digits"	Unique name of the button.
"touch/key_1.png"	Path to the icon file (.png format). If the icon is not needed, leave "".
"toggle_digits"	Command to execute after clicking (for example, "buy" for purchase).
0.340000	X coordinate of the upper-left corner of the button.
0.782222	Y coordinate of the upper-left corner of the button.
0.400000	X coordinate of the lower-right corner of the button.
0.888889	Y coordinate of the lower-right corner of the button.
255 255 255	Button color in RGB format.
100	Button transparency (0 - fully transparent, 255 - fully opaque).
0	Flags (see next section).

List of flags

Flags define the behavior of the button. Their values ​​are powers of two:

Flag	Value	Description
TOUCH_FL_HIDE	1	Hides the button (not displayed in the game, but visible in the editor).
TOUCH_FL_NOEDIT	2	Disables editing of the button in the editor.
TOUCH_FL_CLIENT	4	The button is client-side (not saved in the main control file).
TOUCH_FL_MP	8	The button is displayed only in multiplayer.
TOUCH_FL_SP	16	The button is displayed only in singleplayer.
TOUCH_FL_DEF_SHOW	32	The button is always displayed on startup.
TOUCH_FL_DEF_HIDE	64	The button is always hidden on startup.
TOUCH_FL_DRAW_ADDITIVE	128	The button colors are added together in blend mode.
TOUCH_FL_STROKE	256	Enables outline stroke around the button.

Flags can be combined by adding their values ​​together. For example, 5 = 1 + 4 is the combination of TOUCH_FL_HIDE and TOUCH_FL_CLIENT flags, which is a hidden client button.

In the image below, the spray, scores, messagemode buttons are displayed simultaneously with the flag 8 and loadquick, savequick with the flag 16, and each is displayed in the corresponding game mode.

Useful commands

• touch_hide <pattern>: hides buttons by pattern.
• touch_setcommand: changes the command bound to a button.
• touch_settexture: quickly changes the button image.
• touch_setcolor: sets the button color.
• touch_exportconfig: exports the current configuration, including aspect ratio.

Usage examples

• touch_hide menu* hides all buttons with names starting with menu.

• touch_setcolor "attack" 255 160 0 128 changes the color of the primary fire button from opaque white to translucent orange, similar to the color of the HUD in Half-Life.

  Result of executing this command

• Example of adding a new button with a custom icon (the lastinv command is used - quick change between weapons)

  View of this button in layout editor

Tips

• To prevent the look and move buttons from interfering with editing other elements, place them before the others in the configuration file.
• And vice versa, to make a button appear on top of others, place it at the end of the configuration file.
• You can assign commands to buttons that change other buttons, see the previous section "Usage examples".
• After editing each parameter of each individual button in the Touch Buttons section, do not forget to press Save, otherwise the applied parameters will not be saved.
• To create your own icon for the button, you can use any graphics editor (for Android, Photo Editor by iudesk is suitable). Saving conditions:
  • Image format - .png with transparency (e.g. alpha channel)
  • Aspect ratio / size - 1:1 / 256x256
  • Path to the icons location - touch/gfx inside game directory.

Additional links

• Handy palette for selecting color in RGB format
